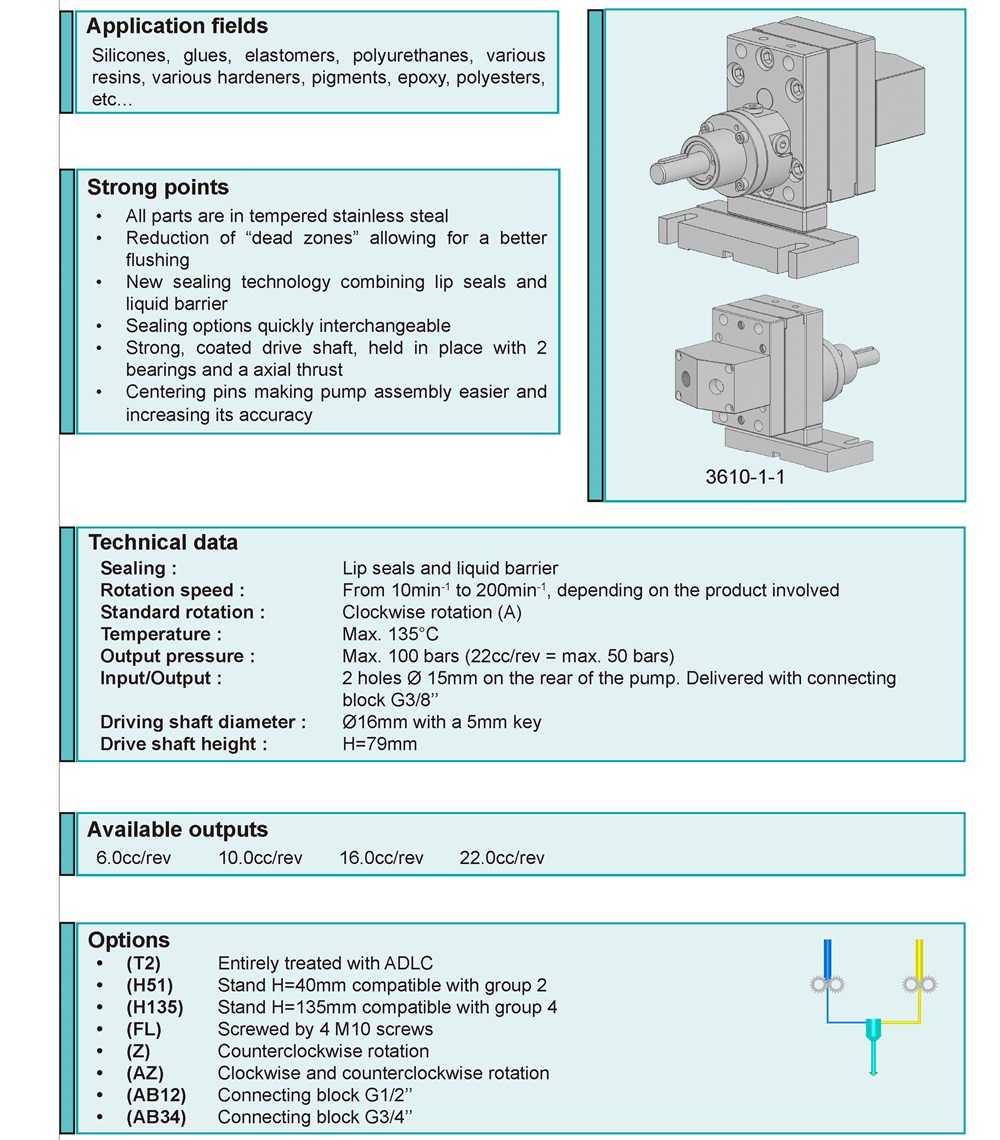

Sealing : Lip seals and liquid barrier
Rotation speed : From 10min-1 to 200min-1, depending on the product involved
Standard rotation : Clockwise rotation (A)
Temperature : Max. 135°C
Output pressure : Max. 100 bars (22cc/rev = max. 50 bars)
Input/Output : 2 holes ? 15mm on the rear of the pump. Delivered with connecting
block G3/8’’
Driving shaft diameter : ?16mm with a 5mm key
Drive shaft height : H=79mm


Available outputs：
1.2cc/rev、2.4cc/rev、3.0cc/rev、6.0cc/rev、10.0cc/rev
