HOME > Products > Gear Pumps > Automotive and Industrial Piants

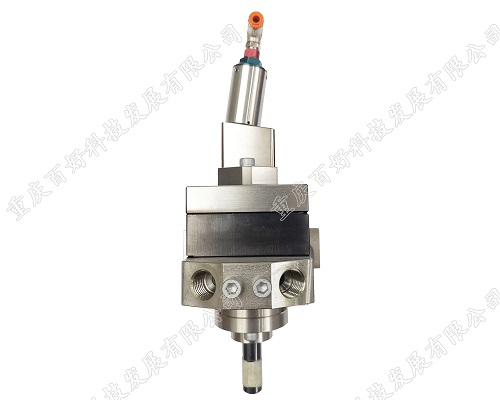

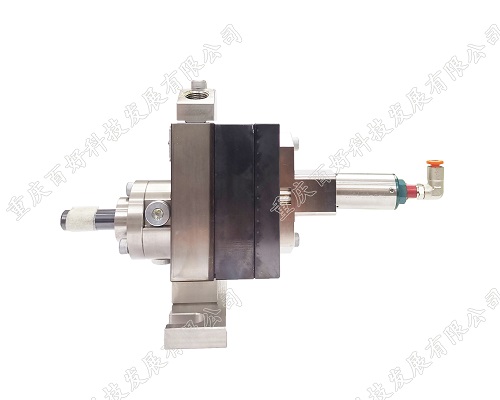

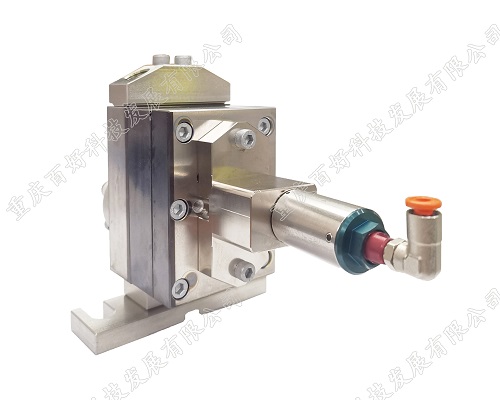

2611 series gear pumps

Sealing : Lip seals and liquid barrier (26KA)
Rotation speed : From 10 to 200 RPM, depending on the product involved
Standard rotation : Clockwise rotation (A)
Output pressure : Max. 15 bars
Input/Output : 2 holes ? 6mm on the body of the pump. Delivered with connecting
block G1/4"
Driving shaft diameter : ?12mm with a 4mm key
Drive shaft height : H=51mm

Available outputs：
1.2cc/rev、2.4cc/rev、3.0cc/rev、6.0cc/rev 、10.0cc/rev

Order

Datasheet

Details

Application fields
This pump is mainly fitted for water or solvant basedautomotive and industrial paint.

Strong points
? Floating driven gear, without idler shaft, allowing a better flushing
? All parts are in tempered stainless steal
? Reduction of “dead zones” allowing a better flushing
? New sealing technology combining lip seals and liquid barrier
? Sealing options quickly interchangeable
? Strong, coated drive shaft, held in place with 2 bearings and a axial thrust
? Centering pins making pump assembly easier and increasing its accuracy
? Cover plate with flushing holes for bypass block

Available options
? (T2) Entirely treated with ADLC
? (H40) Stand for drive shaft height H=40mm
? (Z) Counterclockwise rotation
? (AZ) Clockwise and counterclockwise rotation
? (BB) Bypass block
? (W) Connecting block I/O G1/4" for 2 pressure sensors M28x1.5 or G1/2’’
? (AB38) Connecting block G3/8"
